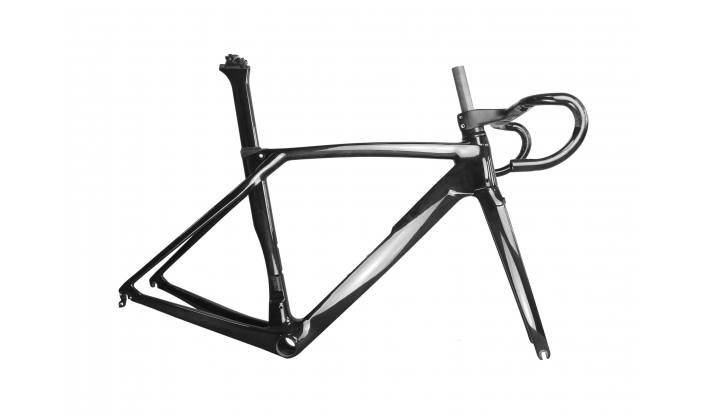

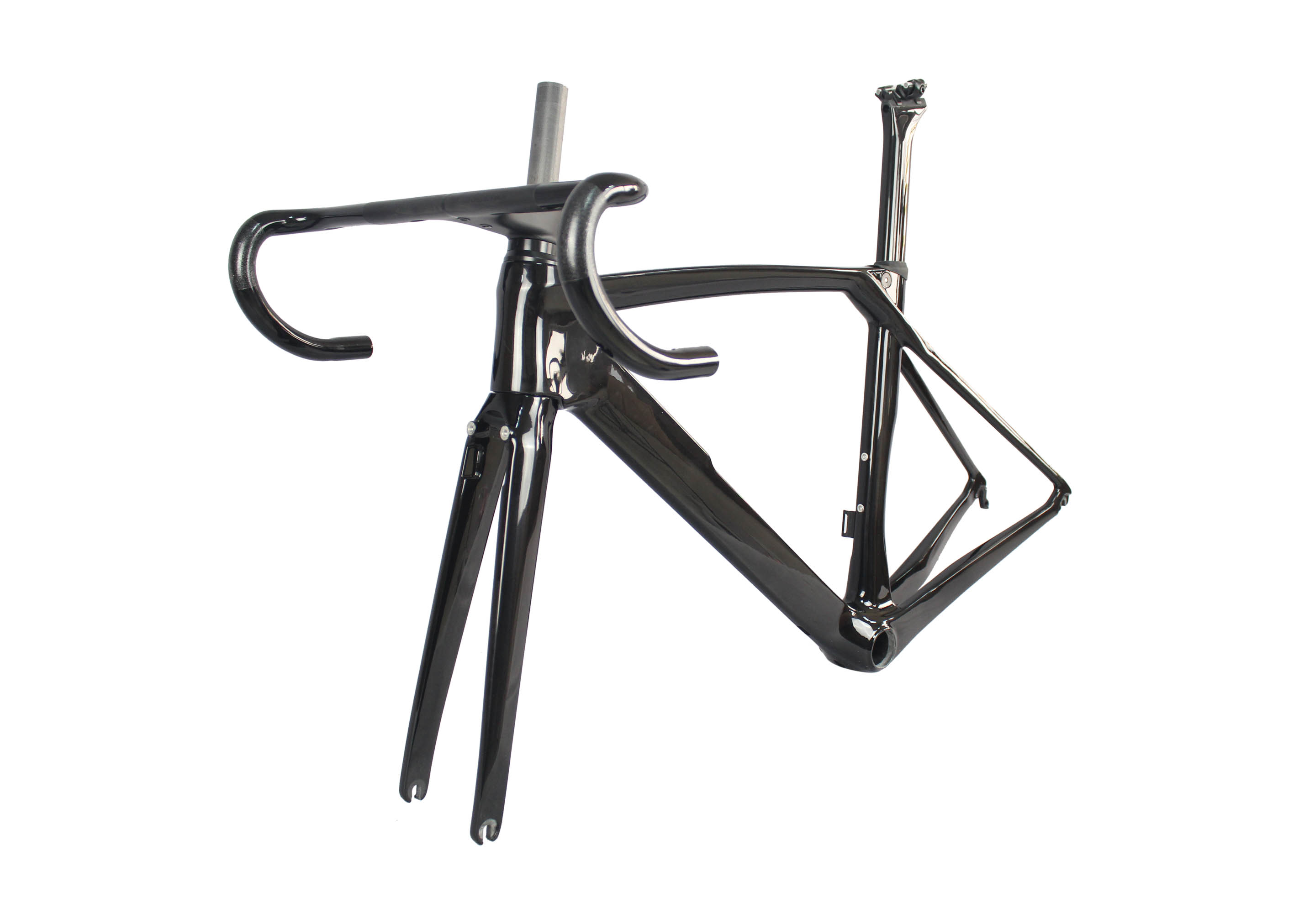

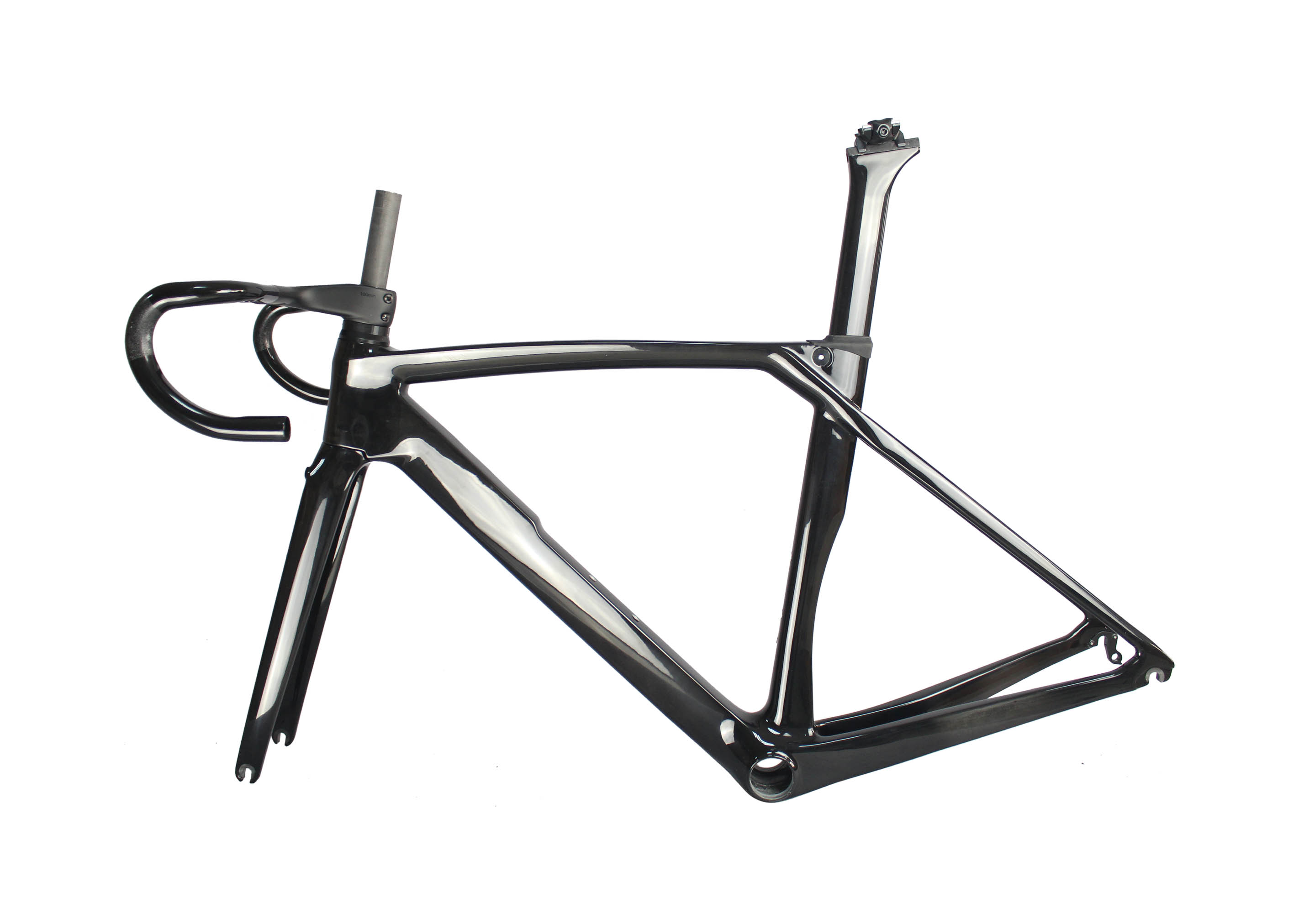

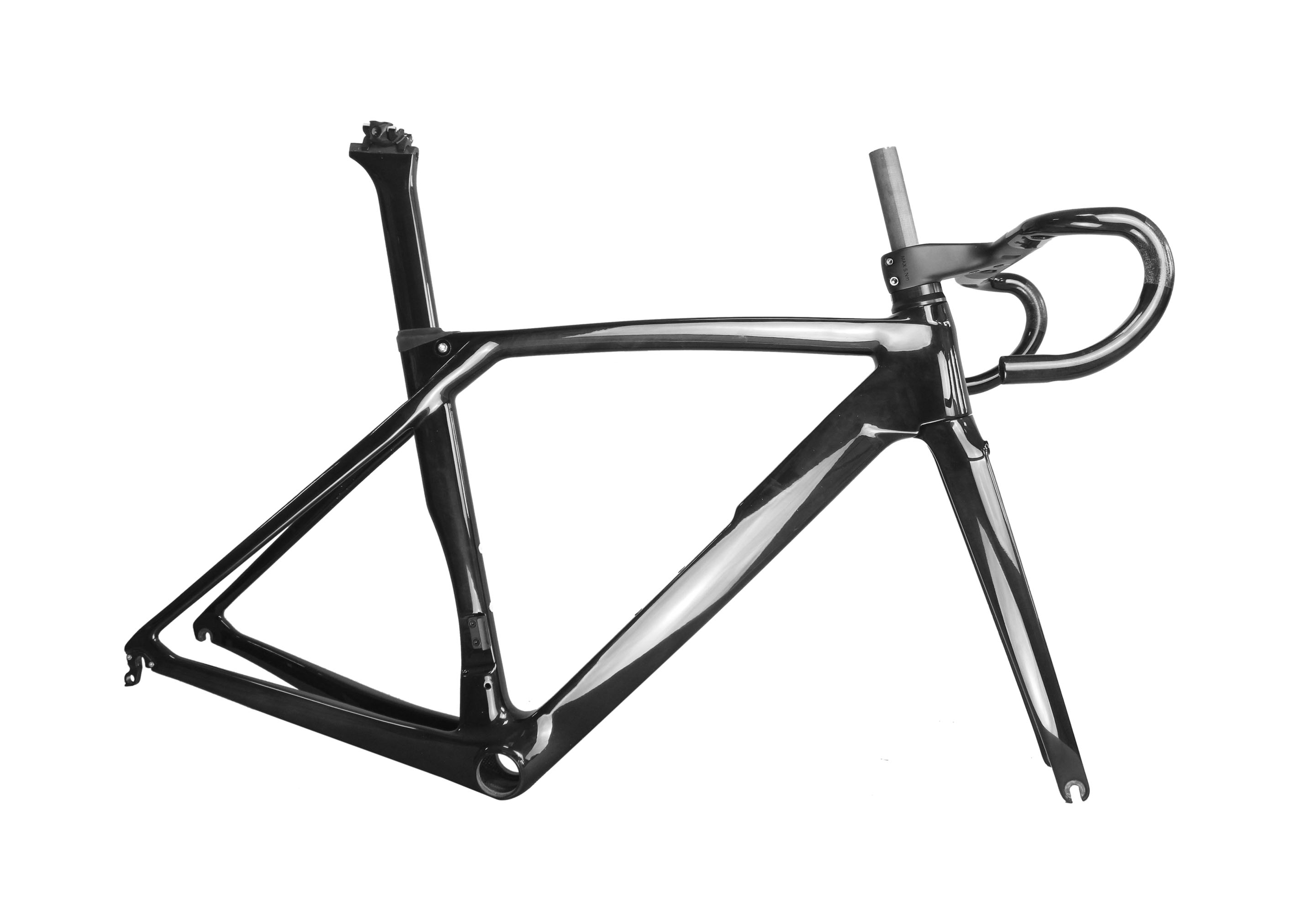

Frameset
CR01 design highlights of are in all concealed interior lines. Except for the rear derailleur cable, the other cable are almost invisible. The frame can be used for internal or exterior cable.
[+] More...
Components
| Item | CR01 Aero |
|---|---|
| Frame size | 50cm,52cm,54cm,56cm,59cm |
| Seat Post | 40cm length |
| Handlebar | 9/10/11/12*40/42/44cm |
| Spacer | 5mm/10mm/20mm |
| Fork | Taper 1.5" |
| Cable Plug | Inner cable plug and outside cable plug available |
| Skewer | Rear 9*130mm;Front 9*100mm |
| Brake Type | Double Bolt Straight Post |
| Bottom Bracket | BB386 Full Carbon |
| Weight | Frame 1060+/-45g(56cm);Fork 375g |
| Tyre | 700*25C |
| Laden Weight | 115KG |
| Warranty | 2 year |
Geometry
| 500mm | 520mm | 540mm | 560mm | 590mm | ||||
|---|---|---|---|---|---|---|---|---|
| A mm | 470 | 490 | 510 | 530 | 560 | |||
| B mm | 528 | 540 | 552 | 567 | 582 | |||
| C Reach | 378.6 | 381 | 386 | 388.2 | 393 | |||
| D Stack | 520.9 | 536.9 | 550 | 567.2 | 581.6 | |||
| E mm | 115 | 130 | 145.7 | 160 | 175 | |||
| F deg | 74 | 73.5 | 73 | 72.5 | 72 | |||
| G deg | 72 | 72.5 | 73 | 73 | 73 | |||
| H mm | 72 | 72 | 72 | 72 | 72 | |||
| I mm | 410 | 410 | 410 | 410 | 410 | |||
| J mm | 574.2 | 577.1 | 583.5 | 588.9 | 598.1 | |||
| K mm | 973.3 | 976.3 | 982.6 | 988.2 | 997.4 | |||
| L mm | 43 | 43 | 43 | 43 | 43 | |||
| M mm | 371 | 371 | 371 | 371 | 371 | |||
| 500mm | 520mm | 540mm | 560mm | 590mm |
