Frameset

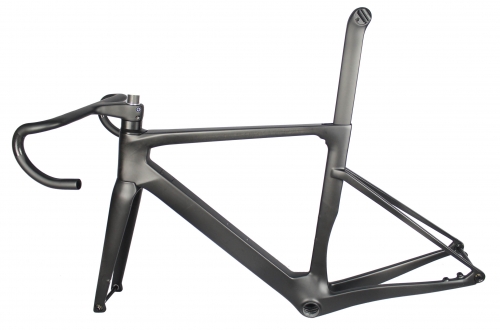

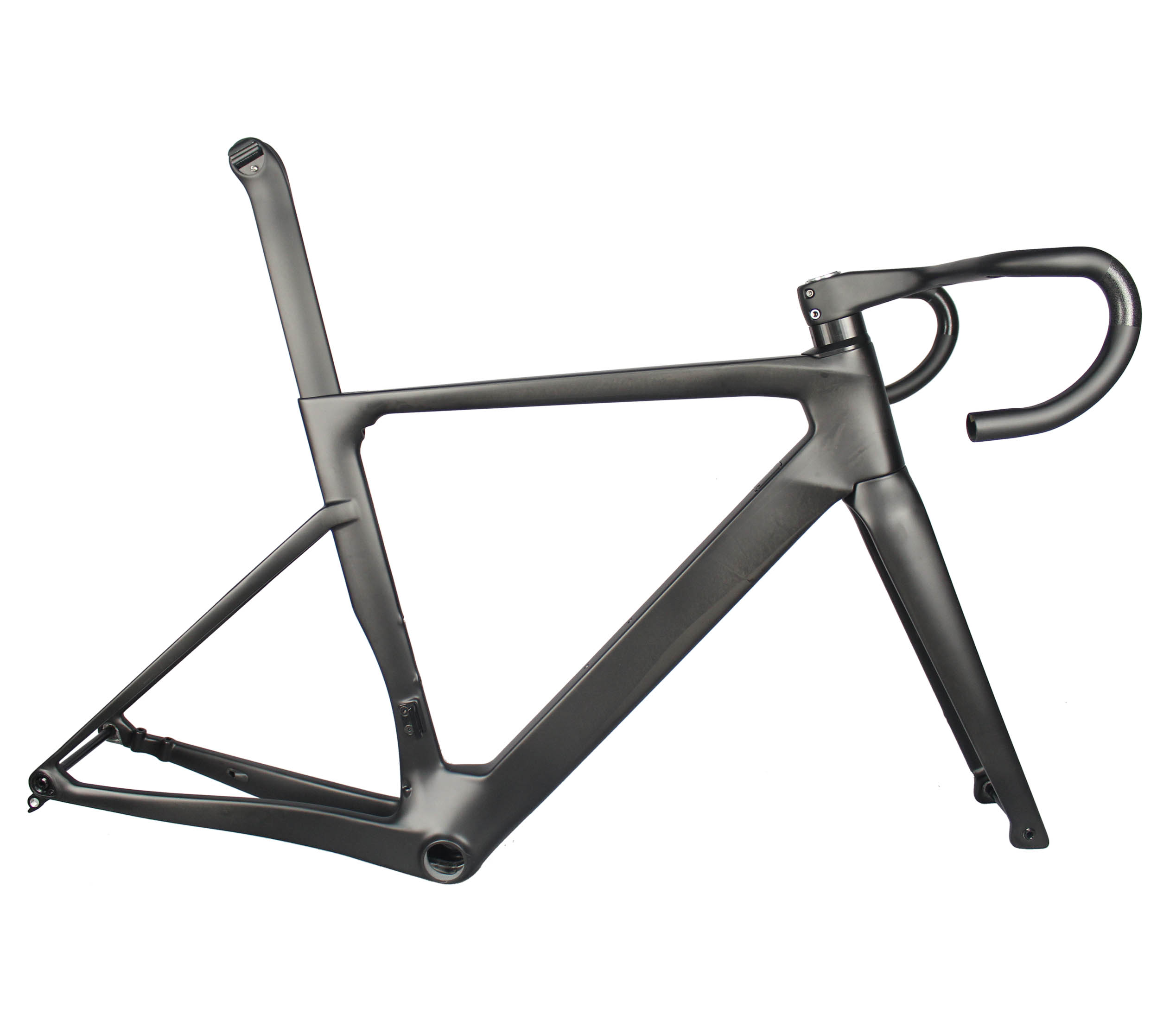

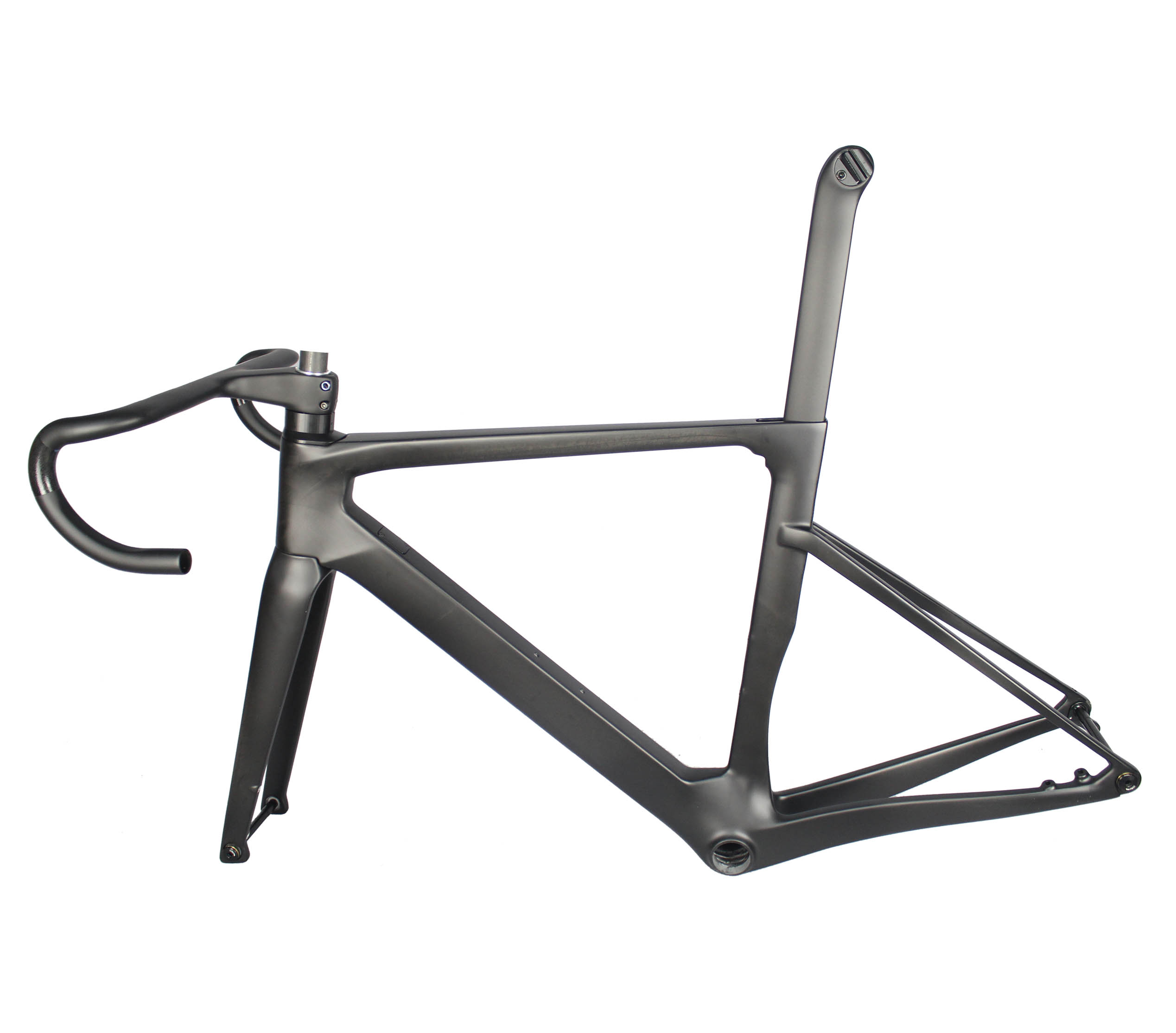

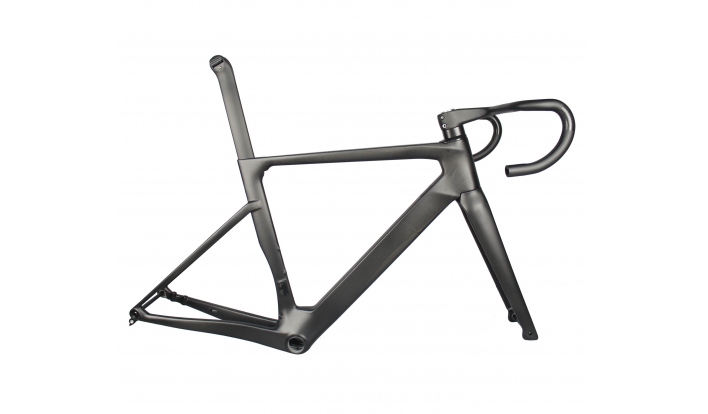

2020 New Disk road bikes carbon frame,All inner hidden cable Aero Carbon frame road. Full carbon BB86 bottom bracket,1.5-1.5 inch head tube, Tyre size 700x28C
[+] More...
Components
| Item | CR028-Disc |
|---|---|
| Material | Material Toray Carbon Fiber |
| Size | 49 52 54 56 59cm |
| Handlebar | 1-1/2" to 1-1/2" |
| Bottom Bracket | BB86 |
| Brake Type | Flat mount |
| Tire | 700*28C |
| Thru axle | Front 12*142mm;Rear 12*100mm |
| Weight | Frame 995G(54mm) Fork380g |
| Seat post | 210g |
| Laden Weight | 115KG |

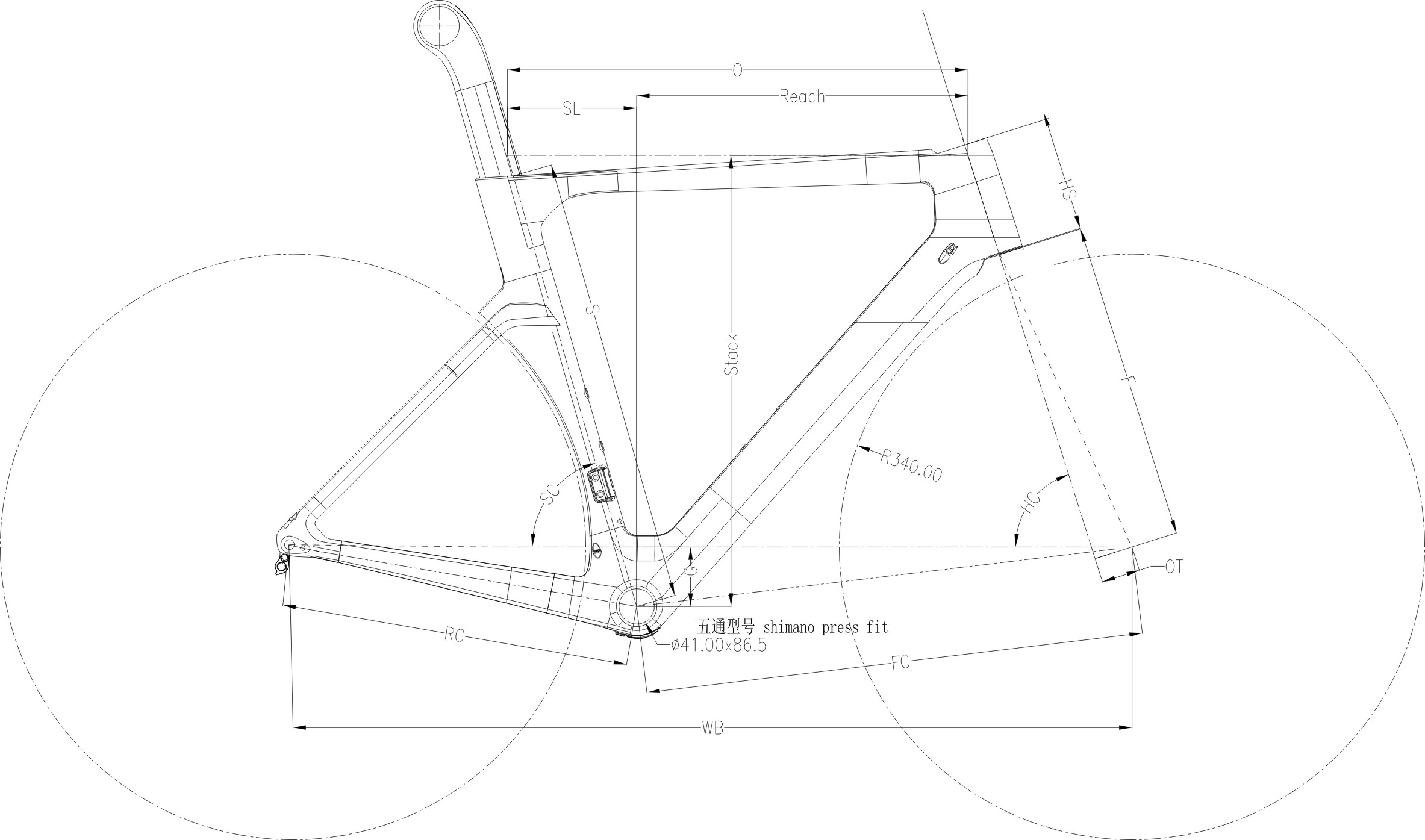

Geometry
| 49cm | 52cm | 54cm | 56cm | 59cm | ||
|---|---|---|---|---|---|---|
| S | 480 | 500 | 520 | 540 | 560 | |
| SC | 74.5 | 74 | 74 | 73.5 | 73.5 | |
| SL | 144.9 | 151.8 | 154.2 | 163 | 170.2 | |
| O | 514 | 529 | 535 | 545 | 559 | |
| HS | 123 | 129 | 137 | 153 | 173 | |
| HC | 71.5 | 72 | 72.5 | 73 | 73 | |
| F | 372 | 372 | 372 | 372 | 372 | |
| OT | 45 | 45 | 45 | 45 | 45 | |
| WB | 973 | 979 | 981 | 982 | 996 | |
| FC | 572.7 | 578.6 | 579.5 | 580.3 | 595 | |
| RC | 410 | 410 | 410 | 410 | 410 | |
| G | 69 | 69 | 69 | 69 | 69 | |
| STACK | 523.2 | 530.6 | 536.6 | 556.9 | 576.1 | |
| REACH | 369.1 | 377.2 | 380.8 | 382 | 388.8 |
